1.The mucking loader adopts Electrohydraulic control system with reduced-voltage start Suitable for long tunnel projects. 2.Main movements controlled by pilot valves,Easily operated and stable. 3.30%

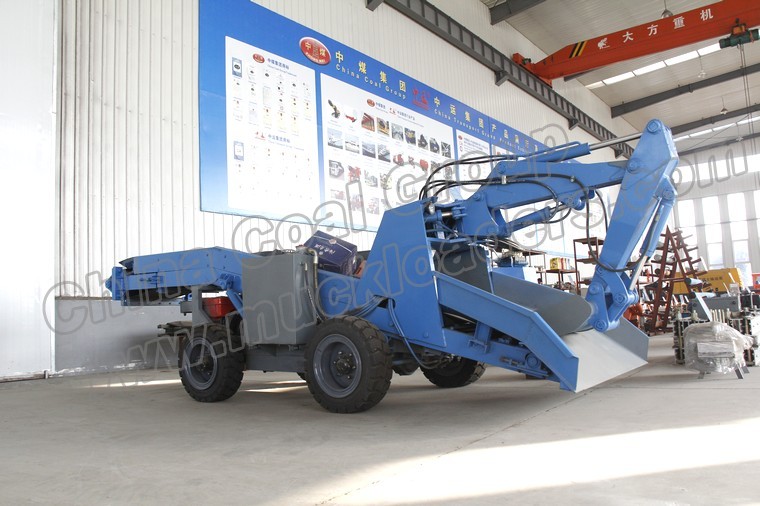

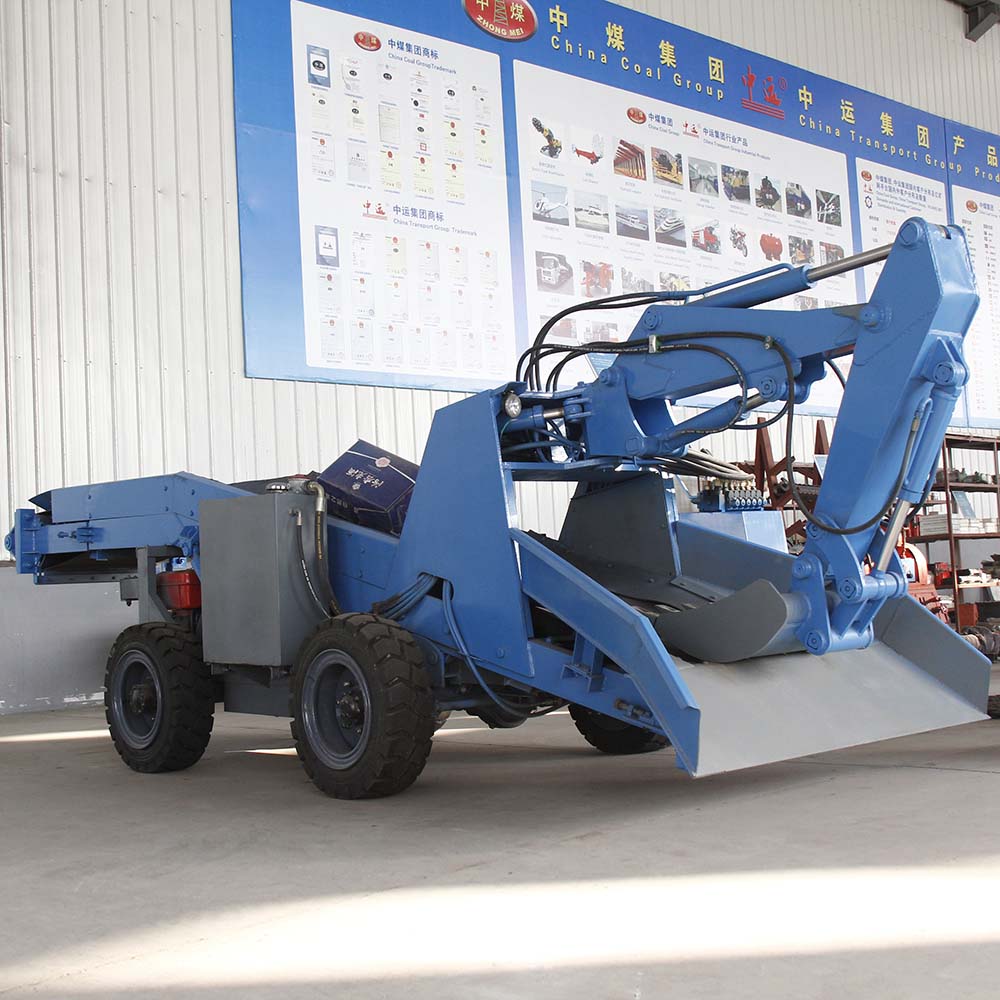

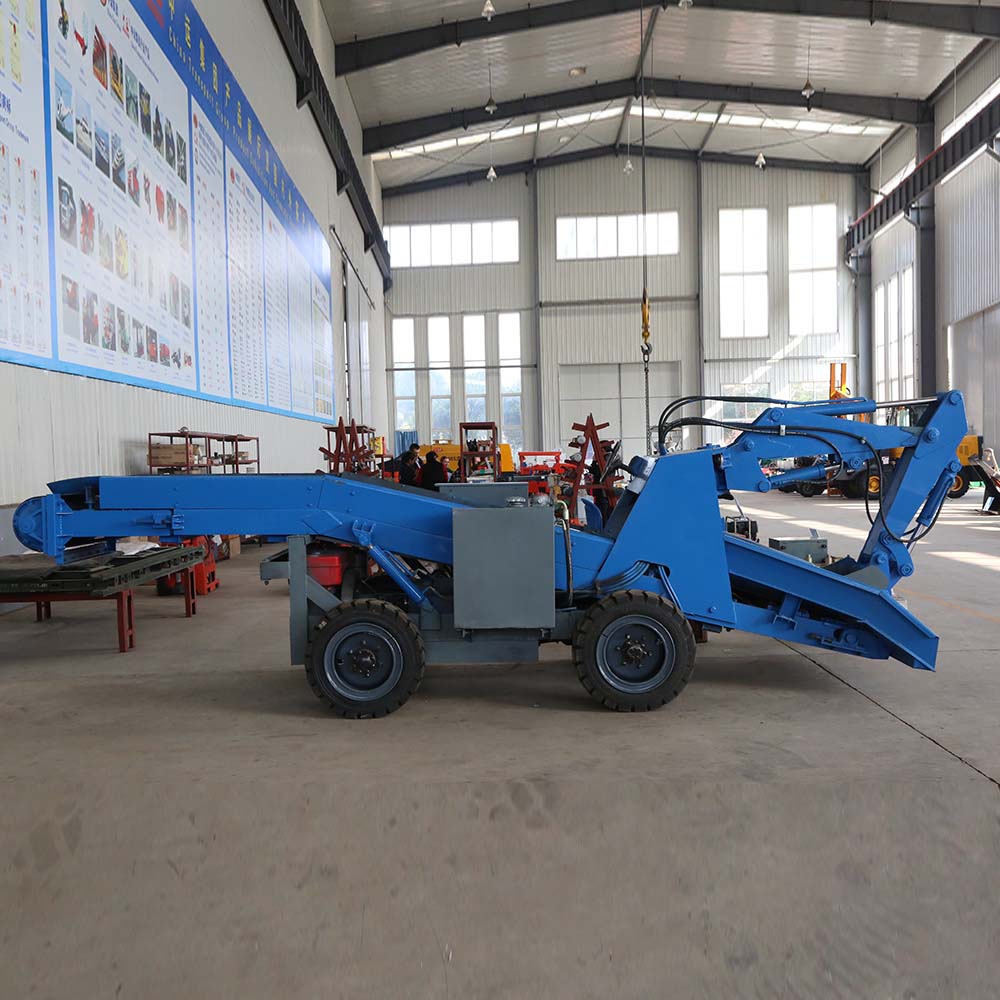

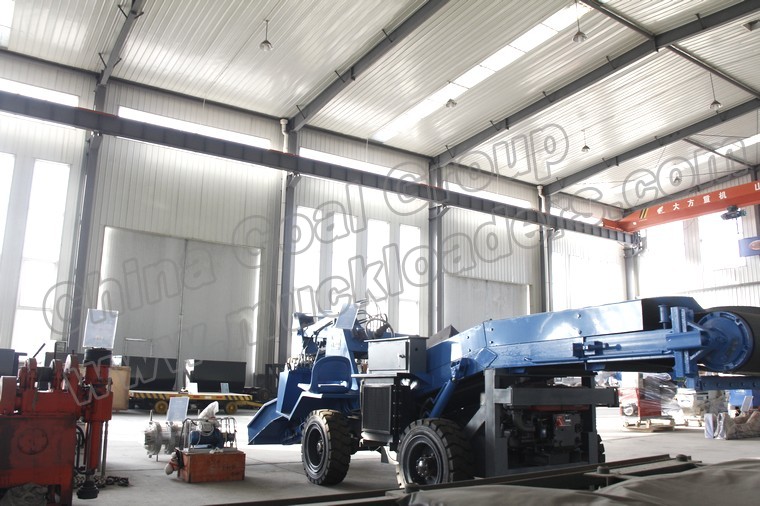

Contact Us Product CenterWheel-Rail Loader Muck Mineral Loader Main characteristics
1.The mucking loader adopts Electrohydraulic control system with reduced-voltage start
Suitable for long tunnel projects.
2.Main movements controlled by pilot valves,Easily operated and stable.
3.30% of the configurations are imported.Oil will be Multistep filtered.with air cooling radiator.
4.Load rocks completely without labor work.
5.Convey rocks with chain -scraper,stable and high efficiency.
6.semi-enclosed assembling,easy to maintain.
|
Item |
Unit |
||
|
Model |
|
Narrow model |
|
|
ZWY-80/18T |
|||
|
Weight |
Kg |
3800 |
|
|
Load capacity |
m3/h |
80 |
|
|
Drive mode |
|
Power (4WD) |
|
|
Digging depth |
mm |
2600 |
|
|
Digging height |
mm |
1900 |
|
|
Digging distance |
mm |
1300 |
|
|
Digging depth |
mm |
430 |
|
|
Unloading height |
mm |
1200(variable) |
|
|
Unloading distance |
mm |
1150(variable) |
|
|
Walking speed |
m/s |
1.03/0.58 |
|
|
Climbing ability |
(°) |
≤15(hard ground) |
|
|
Applicable roadway slope |
(°) |
≤8 |
|
|
Minimum turning radius |
m |
≤4 |
|
|
Belt speed |
m/min |
39 |
|
|
Maximum working pressure |
Mpa |
11 |
|
|
Ground clearance |
mm |
≤160 |
|
|
Total power |
KW |
18 |
|
|
Wheelbase |
mm |
1490 |
|
|
Wheel distance |
mm |
1180 |
|
|
Maximum material size(W×H) |
mm |
400×300 |
|
|
Maximum arm rotation angle |
(°) |
±30 |
|
|
Dimension |
L |
mm |
6300 |
|
|
W |
mm |
1500 |
|
|
H |
mm |
1600 |
|
Tunnel section(W×H) |
m |
≥2×2 |
|
